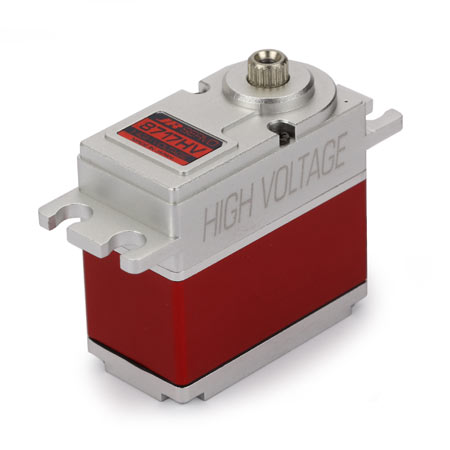

DS8717HV High-Voltage Ultra Speed Cyclic Servo

Part Number: JRPS8717HV

Retail:

$319.99

MAP:

$149.99

Items are currently out of stock Backorders not available for this product


Due to a temporary production delay, there is currently no ETA available for this item.
  • Overview

  • Features

  • Specifications

  • Questions


Overview

JR - JRPS8717HV - DS8717HV High-Voltage Ultra Speed Cyclic Servo

With its new aluminum case, SuperSteel" gears, a high voltage motor and improved electronics, the 8717 takes helicopter servos to a whole new galaxy of performance.

Plus it maintains JR's legendary reliability and unmatched, true zero-deadband precision.

Battery chemistries such as LiPo, LiIon, and LiFe have become very popular within the RC community. They are the standard for powering electric motors and have also gained popularity as receiver battery packs. The issue is the output voltage of these batteries is higher then the previous standard 4 - and 5-cell NiCd and NiMH packs, 4.8V and 6V respectively. The higher voltage is not an issue with the receivers but can be for the servos. Many servos will not operate at these higher voltages for very long before burning out the motors or electronics.

To get around this issue modelers have had to use a regulator to drop the voltage to an acceptable operating range for their servos, usually around 5 to 6 volts. The addition of a regulator adds a component that, should it fail, can cause the loss of a model.

JRs HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell LiPo, LiIon, or LiFe receiver battery pack (6.6V to 7.4V nominal voltage). This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (7.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

Features

JR - JRPS8717HV - DS8717HV High-Voltage Ultra Speed Cyclic Servo

  • Rugged new aluminum case
  • JR SuperSteel" gears for high precision, long wear
  • Exclusive motor designed for high voltage applications
  • Outstanding precision combined with outlandish performance

Specifications

JR - JRPS8717HV - DS8717HV High-Voltage Ultra Speed Cyclic Servo

  • Size Category: Standard
  • Type: Digital
  • Application: 50-size and larger helis, cyclic
  • Torque: 230 oz/in (2S LiPo battery)
  • Speed: .06 sec/60 degree
  • Length: 1.58 in
  • Width: 0.82 in
  • Height: 1.57 in
  • Weight: 2.6 oz
  • Bushing Or Bearing: Bearing
  • Bearing: Dual
  • Motor Type: Coreless
  • Connector Type: JR
  • Gear Type: Metal
  • Gear Material: SuperSteel"
  • Voltage: 6-8.5V (2S LiPo battery)
  • Deadband: Less than .001ms
