JR Americas

E6-550 Heli, Full Combo Kit, Mtr, ESC, Bld, SX, Gy

Part Number: JRP988300






  • Overview
  • Features
  • Specifications
  • Questions


JR - JRP988300 - E6-550 Heli, Full Combo Kit, Mtr, ESC, Bld, SX, Gy

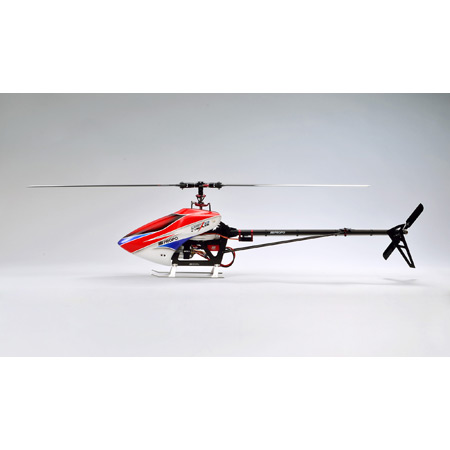

The JR® NEX E6-550 helicopter incorporates legendary JR quality with innovation bound to revolutionize the industry standard. The E6-550 is the lightest heli in its class; it may also be the fastest build. Pre-assembled major components help make this premium, yet simple, helicopter kit go together quickly. The NEX E6-550 heli is designed with STF (Sub Trim-Free) full metal servo train. The STF system requires zero sub trim adjustment on the transmitter and eases servo setup on the helicopter. By using metal structure, it provides direct control to the collective control so that it gives higher response to your inputs. But what makes the E6-550 heli even more special is that all you need to complete it is your favorite radio and a battery. The combo package includes matched components built to deliver a pro-level experience and the sweet 3D performance everyone is talking about.

Items included
" Brushless motor: NHM-40-8P (KV1750)
" ESC: NHA-75-SB5 (75A/BEC5A)
" Triple-axis gyro system TAGS01, already programmed with optimized parameters
" Swash servo FBL-DS11 (3pcs)
" Rudder servo DS3500G


JR - JRP988300 - E6-550 Heli, Full Combo Kit, Mtr, ESC, Bld, SX, Gy

  • Unique control system allowing STF (Sub Trim-Free) adjustment
  • Ample space for high-capacity batteries
  • Carbon frame, tail boom, fins
  • Flybarless rotor head with metal main blade grips
  • Carbon main rotor and tail rotor blades
  • Metal tail rotor grips with thrust bearing
  • Main system components are pre-assembled
  • Lightweight and high-rigidity frame
  • FRP-painted canopy
  • Shaft-driven tail


JR - JRP988300 - E6-550 Heli, Full Combo Kit, Mtr, ESC, Bld, SX, Gy

  • Type: 550-class electric flybarless collective-pitch helicopter
  • Main Rotor Diameter: 45.0 in (1142mm)
  • Tail Rotor Diameter: 8.66 in (220mm)
  • Gross Weight: 5.07 lb (2.3 kg)
  • Length: 38.8 in (986mm)
  • Main Gear Ratio: 13.64:1 (11T); 12.5:1 (12T)
  • Tail Ratio: 1:4.26
  • Motor Size: Brushless motor: NHM-40-8P, 1750Kv
  • Kit/ARF/RTF: Kit
  • Control System: 140 CCPM flybarless
  • Rotor Blade Length: 510mm
  • Minimum Age Recommendation: 14 years
  • Experience Level: Advanced
  • Recommended Environment: Outdoor
  • Assembly Time: 5-7 Hours
  • Is Assembly Required: Yes
